Camera information

  • Image Sensor: 1/2.8 Inch SONY CMOS Sensor
  • Effective Pixels: 851M, 16:9
  • Video Format:
    • HDMI: 4KP30, 4KP25, 1080P30, 1080P25, 1080P29.97
    • SDI: 1080P30, 1080P25, 1080P29.97
    • USB3.0:
      • Main Stream: YUY2/NV12: 1920×1080/1280×720/1024×576/
        800×600/800×448/640×360/480×270/320×180 @ 10/5fps
      • MJPG/H264: 3840×2160/1920×1080/1600×896
        /1280×720/1024×576/960×540
        /800×600/800×448/720×576/720×480/640×360
        /640×480/480×270/352×288/320×240 @ 30/25/20/15/10/5fps
      • Secondary Stream: YUY2/NV12: 1280×720/1024×576/800×600/800×448
        /640×360/640×480/480×270/352×288/320×240 @ 30/25/20/15/10/5fps
  • Optical Zoom: 12x
  • View Angle: Horizontal: 6.5° (N) ～ 70.9° (W)
  • IRIS Value: F1.6 ～ F2.8±5%
  • Digital Zoom: 15x
  • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
  • DNR: 2D & 3D
  • White Balance: Auto/Manual/One-Push/Specified Temperature
  • Focus Mode: Auto/Manual/One-push
  • Exposure Mode: Auto, Manual, Shutter Priority, Iris Priority, Bright Priority
  • Iris: F1.8 ～ F11, CLOSE
  • Shutter Speed: 1/25 ～ 1/20000
  • BLC: On/Off
  • Dynamic Range: Off, 1 ～ 8
  • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

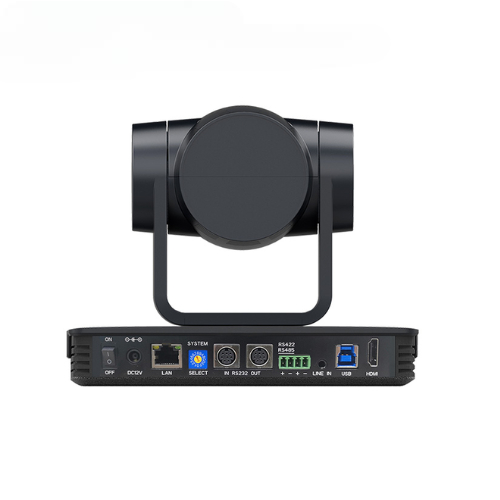

  • Back Panel: HDMI, SDI, LAN (POE), USB3.0, A-IN, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V power supply, dial switch, power switch
  • Video Output: HDMI, SDI, LAN, USB3.0
  • Video Compression Formats: USB 3.0: MJPG, H264, YUY2, NV12
  • Audio Input Jack: Dual channel 3.5mm linear input
  • Audio Output Jack: HDMI, SDI, LAN, USB3.0
  • Audio Compression Format: AAC, MP3, G.711A
  • Network Port: 10M/100M/1000M adaptive Ethernet, supports POE, audio/video output
  • Network Protocols: RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, Support remote upgrade, remote reboot, remote reset
  • Control Jacks: RS232-IN, RS232-OUT, RS422 compatible with RS485
  • Serial Port Protocols: VISCA/Pelco-D/Pelco-P; Baudrate: 115200/38400/9600/4800/2400
  • USB Communication Protocols: UVC (Video communication protocol), UAC (Audio communication protocol)
  • Power Interface: HEC3800 power socket (DC12V)
  • Power Adapter: Input AC110V~AC220V; Output DC12V/2.5A
  • Voltage: DC12V±10%
  • Currency: <1A
  • Power Consumption: <12W
  • Pan: -170° ～ +170°
  • Tilt: -30° ～ +90°
  • Pan Speed: 0.1°/s ～ 60°/s
  • Tilt Speed: 0.1°/s ～ 45°/s
  • Preset Speed: Pan: 60°/s, Tilt: 45°/s
  • Preset Quantity: 255 presets (10 via remote control)
  • Storage Temperature: -10℃ ～ +70℃
  • Storage Humidity: 20% ～ 95%
  • Working Temperature: -10℃ ～ +50℃
  • Working Humidity: 20% ～ 80%
  • Dimension: 181 (L) mm × 115 mm (W) × 149 mm (D)
  • Weight (Approximate): 1.2kg
  • Environment: Indoor
  • Standard Accessory: Power adapter, RS232 control cable, USB3.0 cable, remote control, user manual
  • Optional Accessory: Brackets
  • Real-time Tracking: Maximum tracking range is 6-7 meters, allowing speakers to move at speed of 3-4 meters
  • Zone Tracking: 4 tracking zones can be set and the zones range need to - 170° ～ +170° in horizontal and -30° ～ +90° in vertical

Description

  • Optical Zoom: 12X optical zoom with 70° viewing angle.
  • Advanced Auto Focus Technology: Advanced auto focus technology allows the camera to move fast, accurately, and stably.
  • Low Noise and High SNR: Low noise CMOS provides high SNR.
  • Multiple Connections: Supports HDMI, SDI, USB3.0, wired LAN, and PoE.
  • Audio Input Jack: Supports audio coding in AAC, MP3, G.711A, and the sampling rates of 16000, 32000, 44100, 48000 are available under AAC, MP3 formats.
  • Built-in Gravity Sensor: Built-in gravity sensor supports PTZ auto flip, making setup easier for engineers.
  • Multiple Network Protocols: Supports protocols of ONVIF, GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS, SRT, RTMP Push Mode, RTP multi-broadcasting mode, making it easy to link with stream media servers.
  • Control Jack: RS422 compatible with RS485, RS232-IN, RS232-OUT, RS232 jack capable of cascading.
  • Multiple Presets: Supports 255 presets (10 presets called via remote control).
  • AI Human Detection: Boasting a high-speed processor and advanced image processing and analytic algorithm, the camera supports real-time tracking and zone-tracking.
  • Wide Application: Applied in remote teaching, conference systems, online training, and telemedicine.
