Portfolio Details




Digital Podium information

  • Type of Make: MS fabricated Sheet with sliding top and Lock. Hydraulic with Up-down switch.
  • Display: 22” touch display.
  • Power Point and Cooler: Multiple universal power point and 1 cooling Fan.
  • Audio System: Gooseneck Mic x1, Handheld Mic x 1, Lapel (Collar Mic) x1 with echo cancellation, Mixer Amplifier 100 watt, Speaker 30 Watt X 2.
  • Control Pad: 7 Inches Touch Screen, 800 x 480 resolution, WIFI Enabled, 12v / 1A power consumption.
  • Resolution: 1920X1080, 1920X2160, 4K30, 4K60.
  • Output Port: 4*HDMI, 1*3.5mm, 1*SPDIF audio out.
  • Controlling: IR remote control, RS232 serial command, front buttons & Tablet.
  • Controller
    • CPU: i.MX ARM Cortex-A7 528MHz.
    • Operating System: Linux 4.1.15 kernel.
    • Memory: 512M DDR3 RAM.
    • Relay: 8 - isolated low voltage relay (normally open) 30VDC/AC 1A.
    • I/O: 4 - Digital I/O input.
    • Infrared Serial: 4 - infrared or one-way RS-232 serial port.
    • LAN: 1 - RJ45 10M/100M Ethernet interface.
    • RST: 1 - RST system reset button.
    • LED: 3 – LED system status indicator.

Description

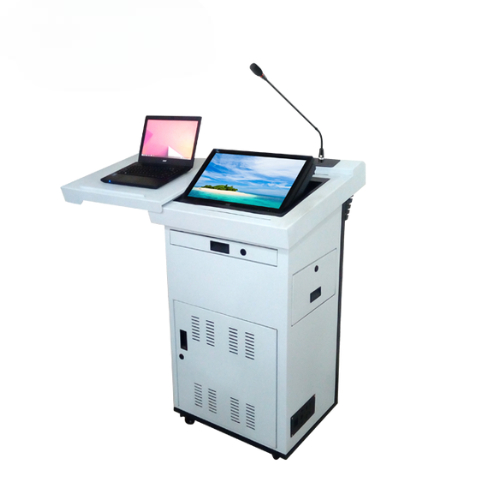

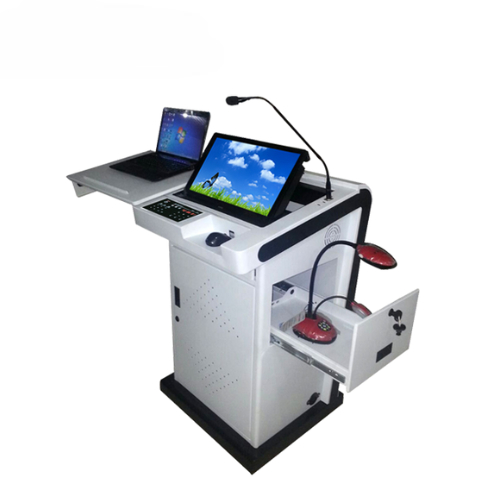

Vastline digital podium is an advanced lectern designed for interactive presentations and lectures. It features an integrated touch screen, multimedia capabilities, and various connectivity options, including HDMI, USB, and wireless connections. The touch screen allows for intuitive navigation and interaction with digital content, while built-in audio systems ensure clear sound. Digital podiums often support software for annotations, multimedia playback, and internet browsing, enhancing the presenter's ability to engage with the audience. Suitable for classrooms, conference rooms, and auditoriums, digital podiums streamline the presentation process, making it more dynamic and efficient. Their sleek design adds a modern touch to any setting.
